Adams Digital DSP 8 Channel Output 8 Channel Built in Amplifier 31 Band Hi-Res 5.0 Bluetooth

Model: EMC 8044 EMPIRE Series

𝐏𝐋𝐄𝐀𝐒𝐄 𝐌𝐀𝐊𝐄 𝐒𝐔𝐑𝐄 𝐘𝐎𝐔𝐑 𝐂𝐀𝐑 𝐒𝐎𝐂𝐊𝐄𝐓 𝐁𝐄𝐅𝐎𝐑𝐄 𝐎𝐑𝐃𝐄𝐑

𝐌𝐎𝐁𝐈𝐋𝐄 / 𝐂𝐎𝐌𝐏𝐔𝐓𝐄𝐑

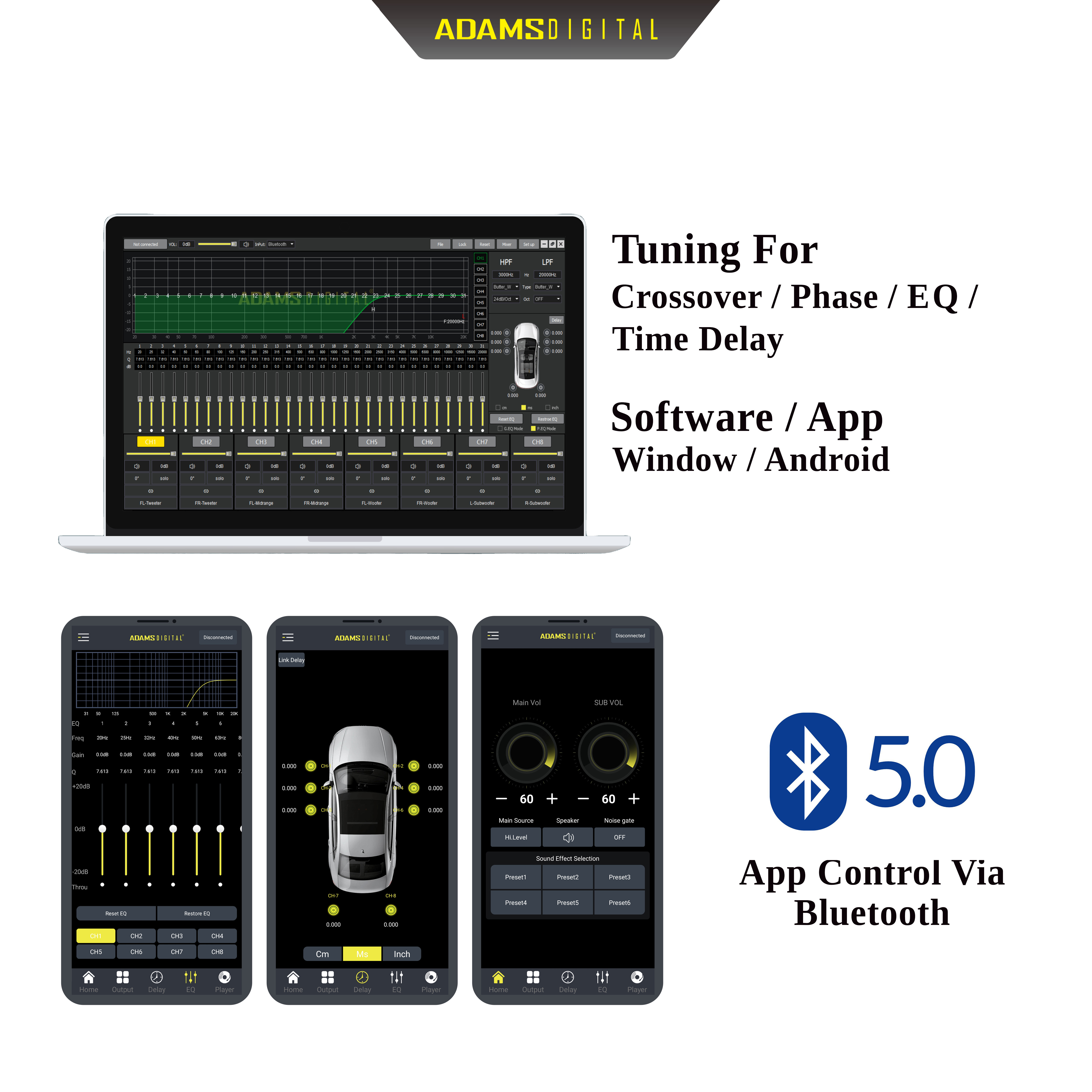

✅Android APP / Windows Software

𝐇𝐈-𝐄𝐍𝐃 𝐂𝐎𝐌𝐏𝐎𝐍𝐄𝐍𝐓𝐒

AKM high-performance DSP chip 269MHz/48Khz/24bit

Built in ADC/DAC: 10-192kHz 24-Bit

Hi-End high-performance low-noise dual operational ampilfier

Hi-End audio capacitors

𝐀𝐌𝐏𝐋𝐈𝐅𝐈𝐄𝐑 𝐎𝐔𝐓𝐏𝐔𝐓 (𝐌𝐀𝐗)

Class AB amplifier: 8CH x 80W (2ohm, 14.4V, 1KHz, 1% THD)

𝐁𝐋𝐔𝐄𝐓𝐎𝐎𝐓𝐇

Bluetooth: Venion 5.0

Protocols: 58C, AAC, BLE, SPP

Formats: SBC, AAC

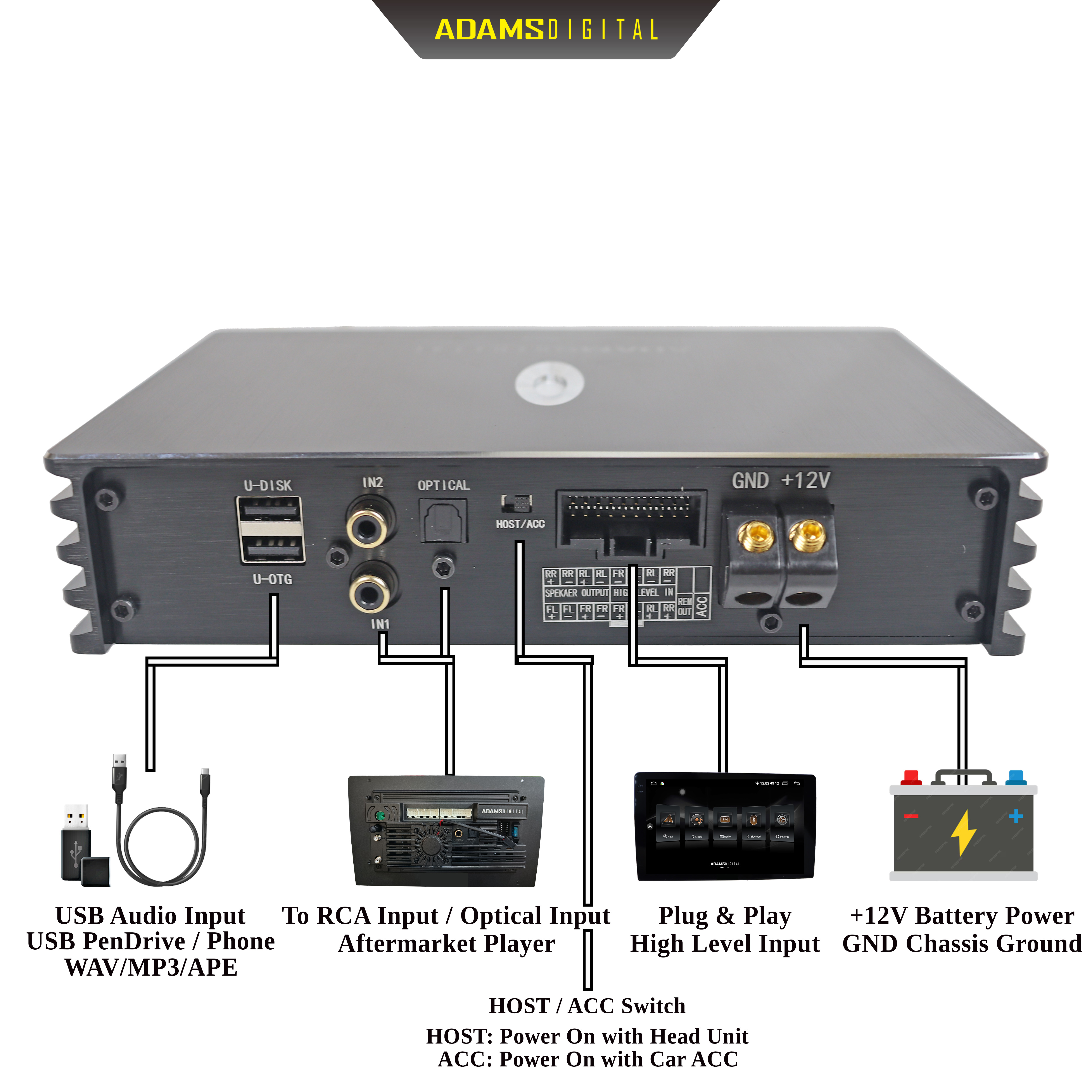

𝐈𝐍𝐏𝐔𝐓 𝐂𝐇𝐀𝐍𝐍𝐄𝐋𝐒

4 channel high-level, AUX, optical fiber (supports 48kHz/16-bit)

Built-in digital Bluetooth

Supported USB Playback Formats: WAV, MP3, APE

OTG Playback Support: High-resolution audio up to 192kHz/24-bit

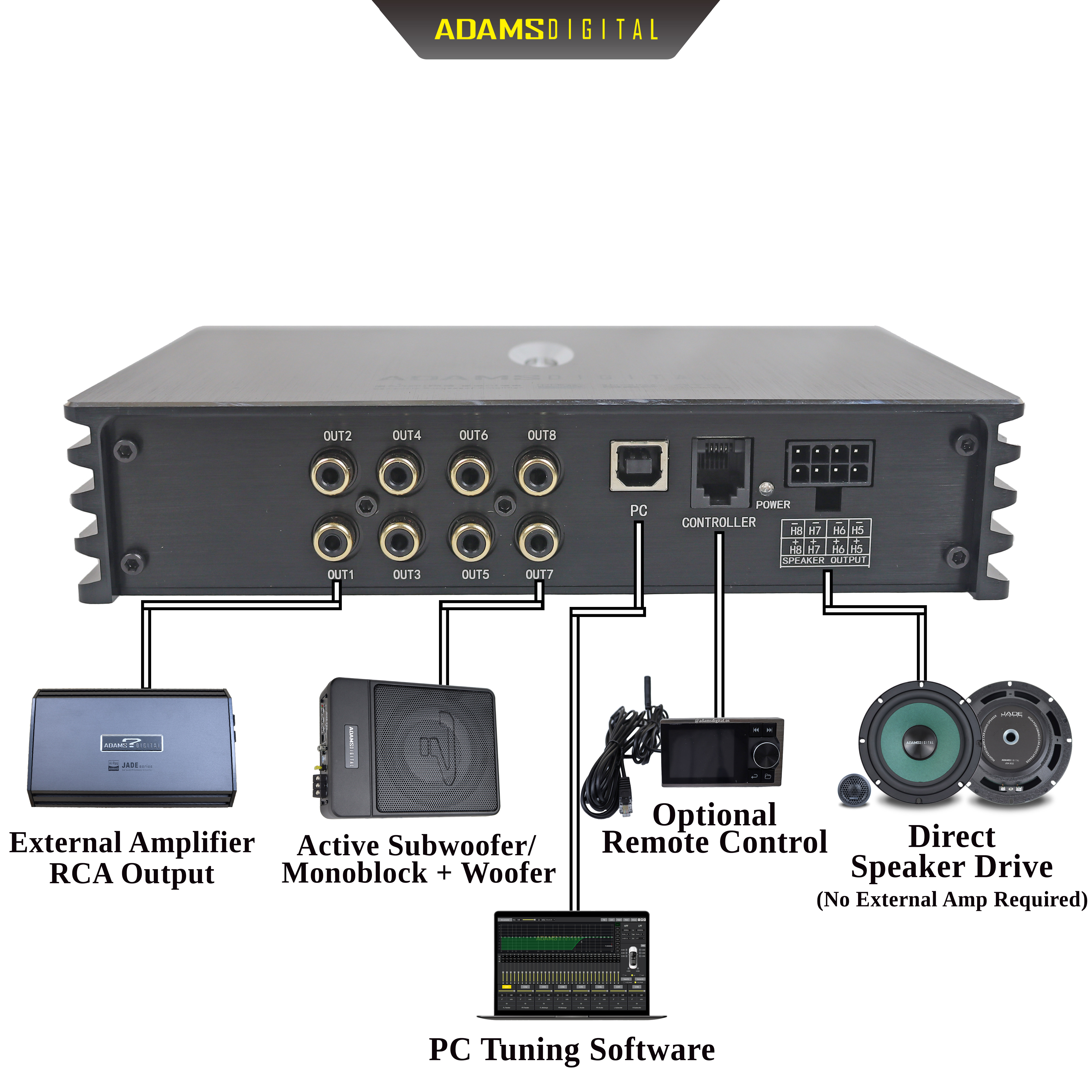

𝐎𝐔𝐓𝐏𝐔𝐓 𝐂𝐇𝐀𝐍𝐍𝐄𝐋𝐒

8-channel high-level

8 channel low-level RCA

Built in 8 channel amplifier

𝐎𝐔𝐓𝐏𝐔𝐓 𝐕𝐎𝐋𝐔𝐌𝐄

Single channel output volume: mute, -60dB-0dB

Single channel subwoofer volume: mute, -60dB-0dB

Master volume adjustment: mute, -60dB-6dB

𝐑𝐄𝐌𝐎𝐓𝐄 𝐂𝐎𝐍𝐓𝐑𝐎𝐋 𝐄𝐗𝐏𝐀𝐍𝐒𝐈𝐎𝐍

Mode selection, master volume selection, language switching,

Bass volume control, USB track control, USB song pause/play, track display, etc.

𝐎𝐔𝐓𝐏𝐔𝐓 𝐒𝐈𝐆𝐍𝐀𝐋 𝐄𝐐

31-band EQ for every channel,

1 Equalizer type:1st equalizer for Q and low pass option.

2nd equalizer for Q and high pass option others for Q balance

2.Frequency Range: 20Hz~20KHz, Resolution 1Hz

3.Q value(Slope): 0.429~28.877

4.Gain: -20.0dB~+20.0dB, Resolution 0.1dB

𝐎𝐔𝐓𝐏𝐔𝐓 𝐒𝐈𝐆𝐍𝐀𝐋 𝐂𝐑𝐎𝐒𝐒𝐎𝐕𝐄𝐑

Multi stage high/low pass indepandent filters per output

1.Professional filter type: Butterworth, Linkwitz-Riley, Bessel

2.Filtering Crossover: 20Hz~20KHz, Resolution 1Hz

3.Filter Slope Setting: 6dB/Oct ~ 48dB/Oct

𝐏𝐇𝐀𝐒𝐄 𝐀𝐍𝐃 𝐓𝐈𝐌𝐄 𝐀𝐋𝐈𝐆𝐍𝐌𝐄𝐍𝐓

Each output channel can be adjusted for phase and time delay, parameter range

Phase: 0 °/180

Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692 cm,0 to 272 inch.

Scene operations Unit can keep 6-style of music scenes by preset.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐃𝐈𝐌𝐄𝐍𝐒𝐈𝐎𝐍𝐒

198mm *140mm *42mm

𝐆𝐑𝐎𝐒𝐒 𝐖𝐄𝐈𝐆𝐇𝐓

0.85KG

𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

S/N: ≥98dB

T.H.D: ≤0.003%

Power: DC9V~17V

Active Range: ≥102dB

Standby Power: ≤0.1W

Storage Temperature: -20~80°C

Operating Temperature: -20~60°C

Frequency Response: 20Hz~20KHz

RCA Output Voltage: RCA/Cinch: 6Vpp

REM Output Start: 12V start voltage output (0.1A)

REM Input Start: High-level start (FL+/FL-), ACC start optional

Input Sensitivity: RCA/Cinch: 1-6Vpp. High-level: 8-28Vpp

Input Impedance: Low Level Input: 20KΩ High Level Input: 4.7Ω

System Sampling Rate: 269MHz/48Khz/24bit, Built-in ADC/DAC: 10-192kHz 24-Bit

𝐅𝐔𝐍𝐂𝐓𝐈𝐎𝐍

8ch high input

8ch built-in amplifier

80wx8 @2Ω

8 channel Aux output

31 band EQ

Bluetooth version 5.0

Two USB ports / OTG

Support Hi-Res File

𝐀𝐝𝐝 𝐎𝐧 𝐖𝐢𝐭𝐡 𝐑𝐞𝐦𝐨𝐭𝐞 𝐂𝐨𝐧𝐭𝐫𝐨𝐥

Remote control function

Control main volume

Control sub volume

Set memory

Can use remote choose usb file songs

Can use remote select input (Bluetooth, USB, Hi-Input, Low-Input,Optical)

𝐏𝐋𝐔𝐆 𝐀𝐍𝐃 𝐏𝐋𝐀𝐘 𝐒𝐎𝐂𝐊𝐄𝐓

-Connects Directly into car dsp connector for easy and quick install

-No need to cut the existing DSP wire

-Fits most push-on terminals
