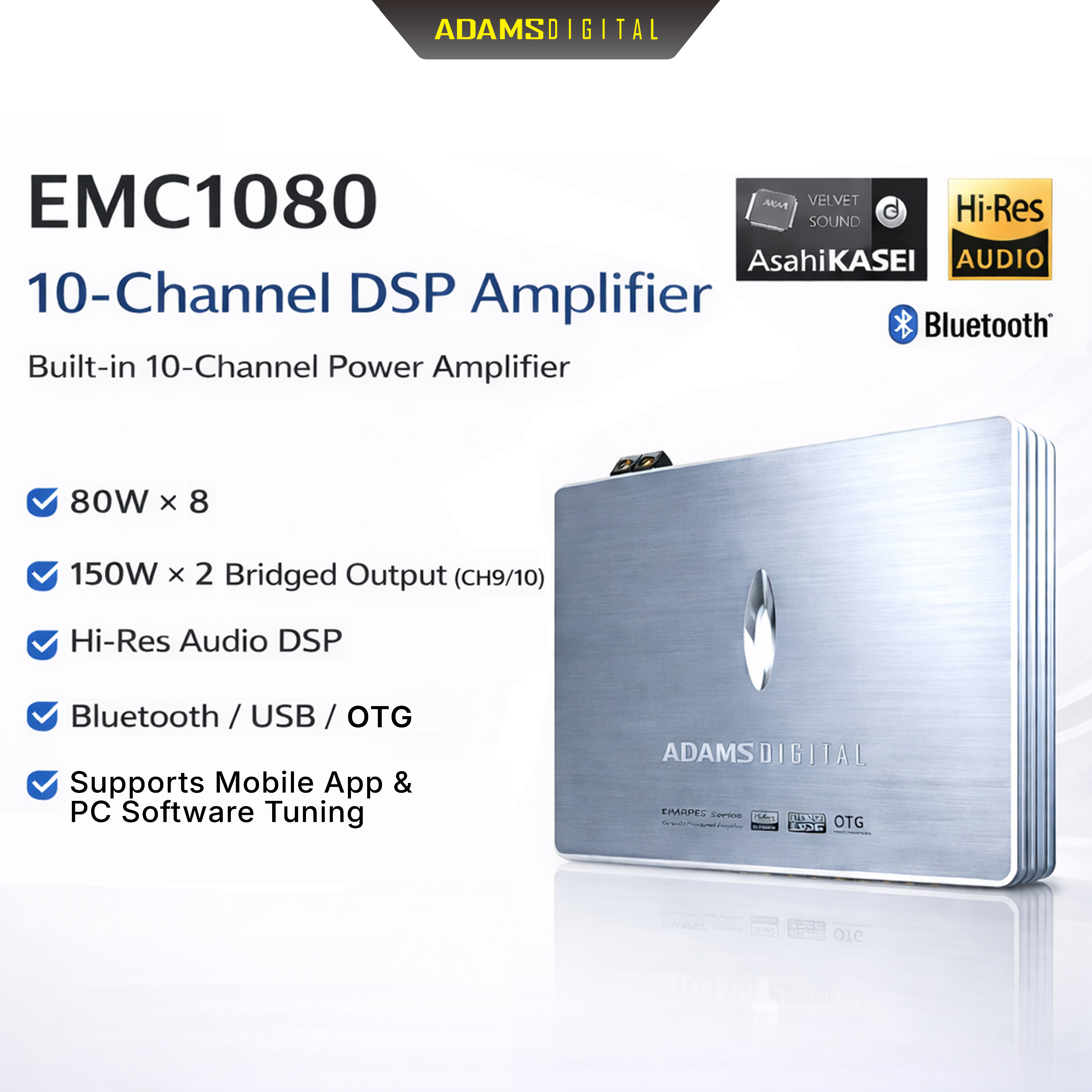

Adams Digital DSP 10 Hi Input 10 Output 10 Channel Built in Amplifier AKM Chip

Model: EMC 1080 (EMPIRE Series)

𝐎𝐧𝐥𝐲 𝐒𝐮𝐩𝐩𝐨𝐫𝐭 𝐒𝐨𝐟𝐭𝐰𝐚𝐫𝐞:

𝐀𝐍𝐃𝐑𝐎𝐈𝐃/𝐖𝐈𝐍𝐃𝐎𝐖

𝐅𝐔𝐍𝐂𝐓𝐈𝐎𝐍

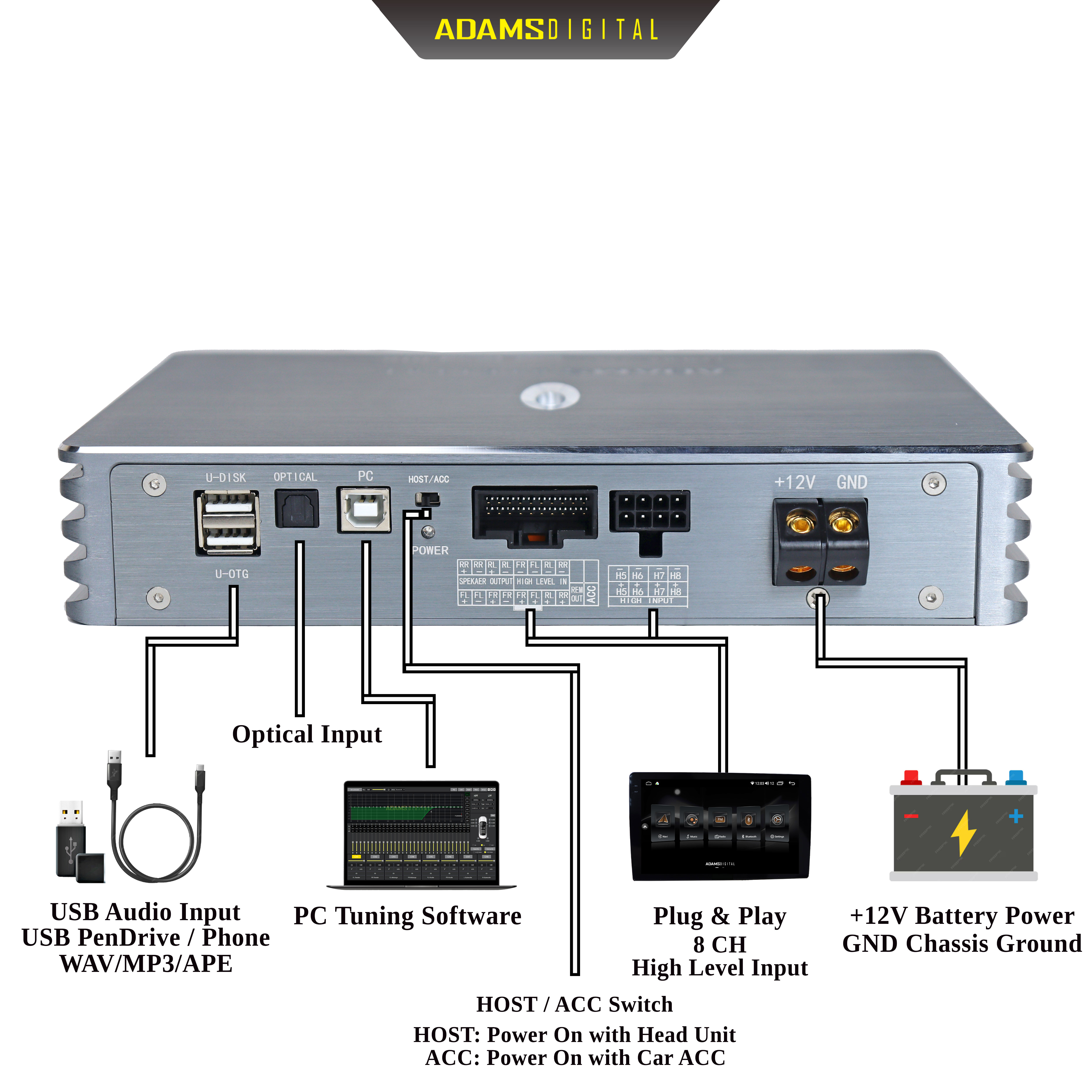

10 Channel High Input

10 Channel Aux Output

10 Channel Built-In Amplifier

8CH×70W+2CH×150W (4Ω, 14.4V, 1kHz, 1%THD)

CH9/CH10 bridging=300W/4Ω

31 band EQ

Optical input

Bluetooth version 5

Two Pen drive ports

𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

Dynamic Range: ≥102dB

S/N: ≥98dB

T.H.D: ≤0.001%

Frequency Response: 20Hz~20KHz

Temperature: -20~80℃

Power: DC 9V–17V (compatible with new energy vehicles)

REM Input: High Level Input Signal:FL+/FL-or ACC control cable

REM Output: +12V Startup Voltage Output(0.1A)

Standby Power: ≤0.1W

Gross Weight: 2KG

Product Dimensions: 230mm *175mm *49.3mm

𝐈𝐧𝐩𝐮𝐭 𝐈𝐦𝐩𝐞𝐝𝐚𝐧𝐜𝐞:

High Level: 4.7Ω

Low level: 20KΩ

𝐇𝐈-𝐄𝐧𝐝 𝐜𝐨𝐦𝐩𝐨𝐧𝐞𝐧𝐭𝐬:

AKM high-performance DSP chip 269MHz/48Khz/24bit

Built-in ADC/DAC: 10-192kHz 24-Bit

Hl-End high-performance low-noise dual operational amplifier Hl-End audio capacitors

𝐈𝐧𝐩𝐮𝐭 𝐂𝐡𝐚𝐧𝐧𝐞𝐥𝐬:

8-channel high-level, AUX, optical fiber (supports 48kHz/16-bit)

Built-in digital Bluetooth

Supported USB Playback Formats:WAV, MP3, APE

OTG Playback Support: Supports high-resolution audio up to 192kHz/24-bit

𝐇𝐢𝐠𝐡-𝐋𝐞𝐯𝐞𝐥 𝐈𝐧𝐩𝐮𝐭 𝐌𝐢𝐱𝐢𝐧𝐠:

Up to 8 independent inputs per channel

𝐁𝐥𝐮𝐞𝐭𝐨𝐨𝐭𝐡:

Version 5.0

Protocols: SBC, AAC, BLE, SPP

Formats: SBC, AAC

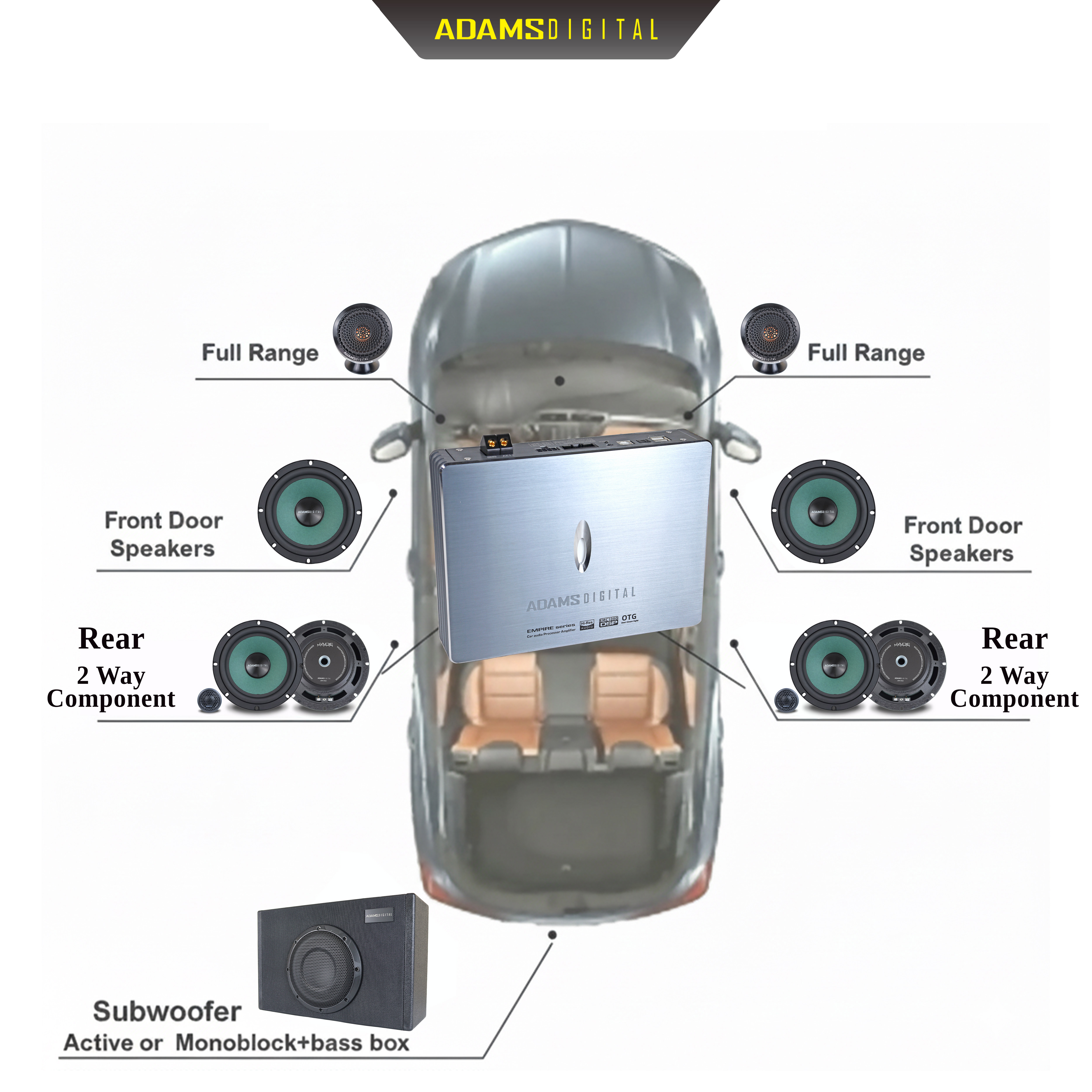

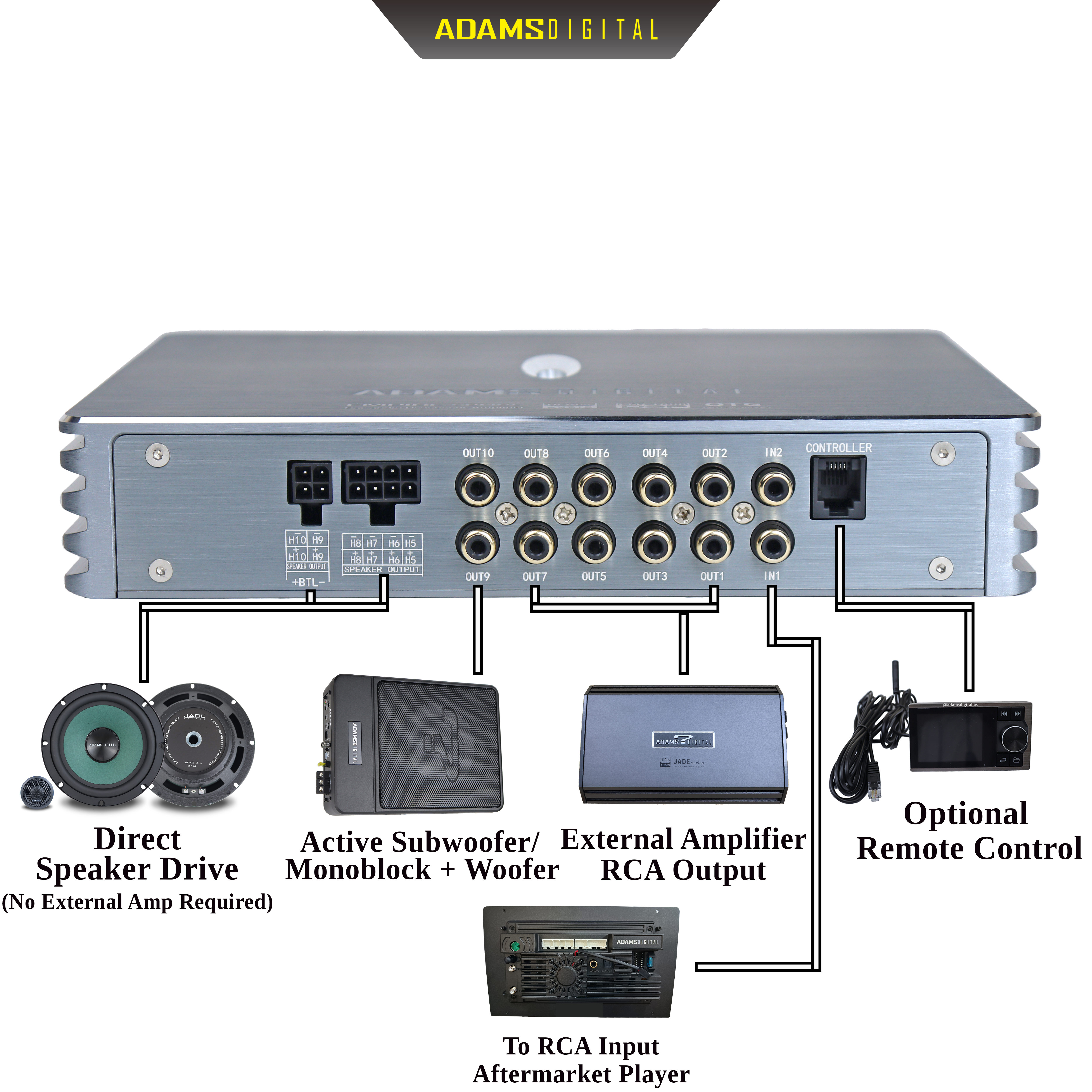

𝐎𝐮𝐭𝐩𝐮𝐭 𝐂𝐡𝐚𝐧𝐧𝐞𝐥𝐬:

10-channel low-level RCA

10-channel high-leve

𝐀𝐦𝐩𝐥𝐢𝐟𝐢𝐞𝐫 𝐎𝐮𝐭𝐩𝐮𝐭 （𝐌𝐀𝐗）:

Class D amplifier: 8CH×70W+2CH×150W (4Ω, 14.4V, 1kHz, 1%THD)

（CH9/CH10 bridging=300W/4Ω）

𝐃𝐲𝐧𝐚𝐦𝐢𝐜 𝐑𝐚𝐧𝐠𝐞: ≥102dB

𝐒𝐢𝐠𝐧𝐚𝐥-𝐭𝐨-𝐍𝐨𝐢𝐬𝐞 𝐑𝐚𝐭𝐢𝐨: ≥98dB

𝐓𝐨𝐭𝐚𝐥 𝐇𝐚𝐫𝐦𝐨𝐧𝐢𝐜 𝐃𝐢𝐬𝐭𝐨𝐫𝐭𝐢𝐨𝐧: ≤0.001%

𝐎𝐩𝐞𝐫𝐚𝐭𝐢𝐧𝐠 𝐓𝐞𝐦𝐩𝐞𝐫𝐚𝐭𝐮𝐫𝐞: -20~80℃

𝐈𝐧𝐩𝐮𝐭 𝐒𝐞𝐧𝐬𝐢𝐭𝐢𝐯𝐢𝐭𝐲:

RCA/Cinch: 1-6Vpp, High-level: 8-28Vpp

𝐅𝐫𝐞𝐪𝐮𝐞𝐧𝐜𝐲 𝐑𝐞𝐬𝐩𝐨𝐧𝐬𝐞: 20Hz～20KHz

𝐈𝐧𝐩𝐮𝐭 𝐈𝐦𝐩𝐞𝐝𝐚𝐧𝐜𝐞 𝐋𝐨𝐰-𝐥𝐞𝐯𝐞𝐥: 𝟐𝟎𝐤Ω, 𝐇𝐢𝐠𝐡-𝐥𝐞𝐯𝐞𝐥: 4.7Ω

𝐑𝐂𝐀 𝐎𝐮𝐭𝐩𝐮𝐭 𝐕𝐨𝐥𝐭𝐚𝐠𝐞 𝐑𝐂𝐀/𝐂𝐢𝐧𝐜𝐡: 6Vpp

𝐏𝐨𝐰𝐞𝐫 𝐒𝐮𝐩𝐩𝐥𝐲:

DC 9V–17V (compatible with new energy vehicles)

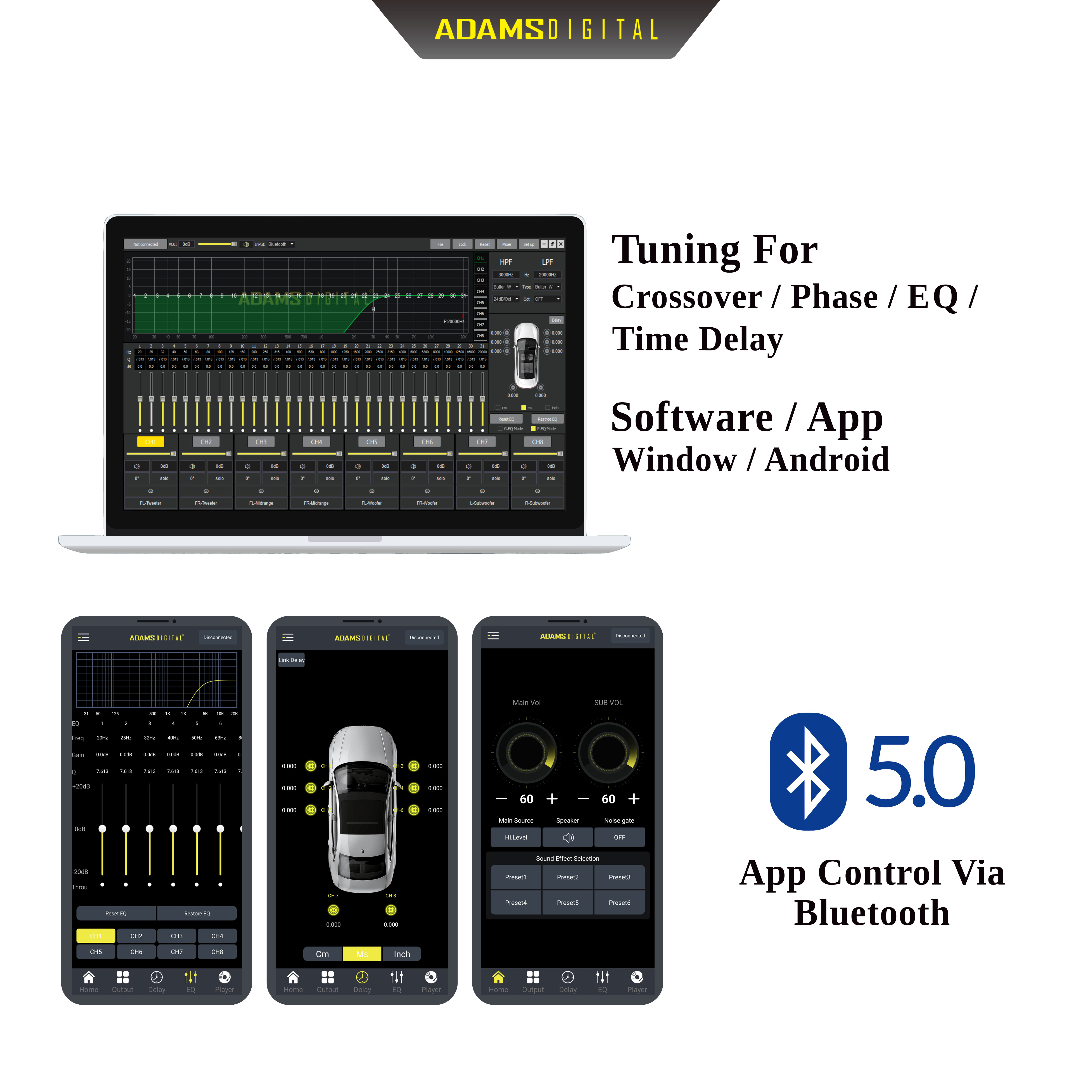

𝐄𝐪𝐮𝐚𝐥𝐢𝐳𝐞𝐫 𝐂𝐨-𝐓𝐮𝐧𝐢𝐧𝐠 𝐌𝐨𝐝𝐞𝐬:

Each channel can be independently adjusted: positive/negativephase(0°/180°)

𝐎𝐮𝐭𝐩𝐮𝐭 𝐏𝐡𝐚𝐬𝐞:

Each channel: 0.000 to 20.000 milliseconds, 0.00 to 692 centimeters, 0.00to272 inches

𝐎𝐮𝐭𝐩𝐮𝐭 𝐃𝐞𝐥𝐚𝐲:

Single channel output volume: mute, -60dB~0dB

Single channel subwoofer volume: mute, -60dB~0dB

Master volume adjustment: mute, -60dB~6dB

𝐎𝐮𝐭𝐩𝐮𝐭 𝐕𝐨𝐥𝐮𝐦𝐞:

Mode selection, master volume selection, language switching, bassvolumecontrol, USB track control, USB song pause/play, track display, etc.

𝐑𝐞𝐦𝐨𝐭𝐞 𝐂𝐨𝐧𝐭𝐫𝐨𝐥 𝐄𝐱𝐩𝐚𝐧𝐬𝐢𝐨𝐧:

Windows system, XP system, USB interface, driver-free

𝐈𝐧𝐩𝐮𝐭 𝐒𝐚𝐦𝐩𝐥𝐢𝐧𝐠 𝐑𝐚𝐭𝐞:

RCA Input: 48kHz / 24-bit

Optical Input: 96kHz / 24-bit

OTG Input: 192kHz / 24-bit (supports lossless music playback)

USB Input: 192kHz / 24-bit (supports lossless music playback)

𝐎𝐔𝐓𝐏𝐔𝐓 𝐒𝐈𝐆𝐍𝐀𝐋 𝐄𝐐

1. 31-band equalizer engine

2. Frequency range: 20Hz～20KHz, resolution: 1Hz

3. Q value (slope): 0.429～28.877

4. Gain -20.0dB～+20.0dB, resolution: 0.1dB

𝐎𝐔𝐓𝐏𝐔𝐓 𝐒𝐈𝐆𝐍𝐀𝐋 𝐂𝐑𝐎𝐒𝐒𝐎𝐕𝐄𝐑

Multi-stage high/low-pass independent filters per output

Professional filter types: Butterworth, Linkwitz-Riley, Bessel

Crossover frequency: 20Hz–20kHz (1Hz resolution)

Slope settings: 6dB/Oct to 48dB/Oct

𝐀𝐝𝐝 𝐎𝐧 𝐖𝐢𝐭𝐡 𝐑𝐞𝐦𝐨𝐭𝐞 𝐂𝐨𝐧𝐭𝐫𝐨𝐥

Remote control function

Set memory

Set Time Alignment & EQ

Control main volume

Control sub volume

Can use remote choose usb file songs

Can use remote select input (Bluetooth, USB, Hi-Input, Low-Input,Optical)

𝐀𝐃𝐃 𝐎𝐍 𝐏𝐋𝐔𝐆 𝐀𝐍𝐃 𝐏𝐋𝐀𝐘 𝐃𝐒𝐏 𝐒𝐎𝐂𝐊𝐄𝐓

-Connects Directly into car dsp connector for easy and quick install

-No need to cut the existing DSP wire

-Fits most push-on terminals
